Architectural Slot

  • S-2_SLOT_SURFACE_01.JPG

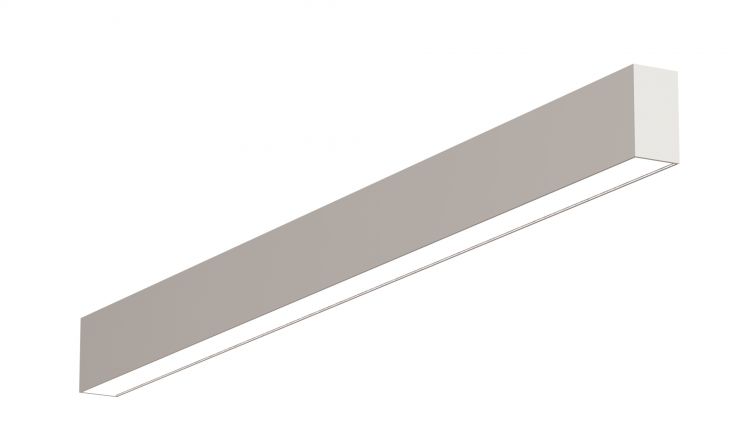

2" Surface / Suspended Architectural Slot

S2

Standard Power - 645 lm/ft | 7.5 W/ft | 86 lm/W
Low Power - 445 lm/ft | 5 W/ft | 89 lm/W
High Power - 743 lm/ft | 9 W/ft | 83 lm/W
Extra High Power - 1000 Lm/Ft | 12 W/ft | 83 Lm/w
CCT – 2700/3000K/3500K/4000K/Tunable White/RGBW
Fixture Lengths – 2’/4’/8’ Standard
CRI - 90+
Warranty - 5 Years


Consult factory for custom modifications.

S2 Surface or Suspended slot fixtures from Electrix support installations in a variety of projects, Suspended versions with 50” Air Craft Cable Standard. Direct Distribution or Direct/Indirect. Fixture width is 2”. Extruded aluminum fixtures powder coated white standard, consult factory for custom colors.

Features:

  • 2', 4', & 8' standard — custom lengths available
  • Custom power and mounting options for any application
  • Universal voltage powered with 120–277V AC
  • 50,000 hrs. @ 70% lumen maintenance.
  • Damp Location Rated
